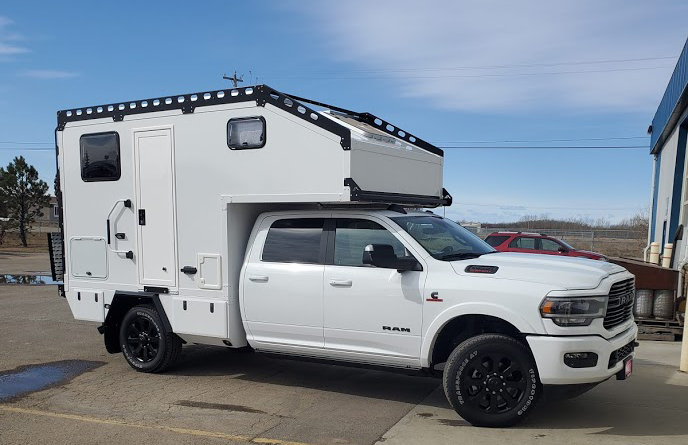

BASE CAMP-H

Starting @$159,900 USD / $203,073 CAD plus chassis

2023 Standard Specifications

  • Hard Wall
  • 3 Season fixed cabin
  • Sleeps up to 4
  • External dimensions: 168” L x 78” W x ??” H
  • Internal dimensions: 165” L x 74.5” W x ??” H
  • Powder coated aluminum extrusions
  • OEV gen 4 composite walls & roof = 1.5″ (38.1mm)(<=R8)
  • 1.5 (38.1mm) honeycomb propylene floor (>=R5)
  • DOT LED lighting
  • Spec’d for a factory F350 or Ram 3500, 4×4, 60″ C/A chassis (diesel or gas)
  • Dry weight:~???? lbs.
  • NOTE:   **PRODUCTION MODEL IS SLIGHTLY DIFFERENT THEN MODLE SHOWN**

Standard & Optional Features

  • (1)-multi speed roof vent

  • 38 gal fresh water tank w/12v pump and sight gauge

  • 15 gray water tank (in-frame location – not heated)

  • sagiva outside & inside shower connection

  • s/s deep sink w/J-handle faucet and cutting board top

  • s/s single burner propane and removable single burner induction cooktop

  • webasto (diesel or gas) airtop 2000 cabin heater

  • oev hydronic system

  • chassis glycol tie in for cabin in travel mode

  • thetford C223CS cassette toilet

  • (2)-200W roof mounted solar panels
  • victron soc display
  • victron 100/30 mppt solar controller
  • victron dc/dc charger
  • 2000W victron multiplus compact 12/2000/80 inverter (w/charger) w/remote on/off
  • (2)-ac 110v plugs
  • LED PS amber exterior side light
  • LED exterior DS/Rear light
  • LED interior lighting
  • 164L dc compressor fridge/freezer
  • smoke/CO/LP detectors
  •  Underbed storage plus a 6” queen size mattress
  • snap on vinyl window cover for entry door
  • screen door
  • (2) dual pane acrylic windows on the passenger and driver side in the dinette area
  • 8 windows in the soft wall (1 on each end and 3 on each side)
  • 51” wide (north/south) u-shaped dinette – folds down into bed
  • marine fabrics for all cushions
  • 4” medium density foam cushions
  • high traffic grade lonseal vinyl flooring
  • powder coated aluminum interior cabinetry
  • 3 ply bamboo counter top and table
  • starboard door and drawer fronts
  • dry bath, shower pan in the entry adjacent to the toilet closet
  • fire extinguisher (abc)
  • cabin fixed to chassis – fully isolated
  • under cabin powder coated aluminum locking cabinets
  • oev powder coated bumper with integrated back up camera & class v hitch
  • oev powder coated aluminum rub rail
  • oev spare tire carrier with a manual hoist-will fit up to a 40”
  • oev molle rack
  • oev ladder
  • oev folding stairs
  • base camp graphics package
  • additional pair of 200W solar panels
  • gernie style bunk over the dinette
  • king bed extension w/6” mattress to match bed
  • additional multispeed roof fan
  • oev front cabin offroad light bar (does not include lights)
  • 3 piece awning adapter kit for alu cab shadow 270 awning
  • 2 piece awning adapter kit for batwing/foxwing/kinsmen
  • air conditioning (split system) works in conjunction with chassis compressor (truck must be running)
  • air conditioning (roof mount) – dc powered (dometic coolair rtx 1000)
  • air conditioning (roof mount) – dc powered (dometic coolair rtx 2000)
  • cabin to cab pass through – sliding glass window on front cabin wall
  • wrappon toilet – replaces the standard spec thetford cartridge toilet
  • victron 100Ah agm battery (note-std spec does not come with a battery)
  • relion LT100 LiFePO4 battery (note-std spec does not come with a battery)

Standard/optional features and prices are subject to change without notice.
