Base Camp
Starting @$159,900 USD
plus chassis
2023 Standard Features
- Pop-up roof
- 3 Season fixed cabin
- Sleeps up to 4
- External dimensions: 170″ L x 82” W x 63.5” H closed / 84.5” open
- Internal dimensions: 166” L x 78” W x 60” H closed / 81” open
- Powder coated aluminum extrusions
- OEV gen 4 composite walls & roof = 1.5″ (38.1mm)(<=R8)
- 1.5 (38.1mm) honeycomb propylene floor (>=R5)
- Fire rated insulated soft walls (>=R4) with egress window
- Electric actuators to open and close pop up roof
- DOT LED lighting
- Spec’d for a factory F350 or Ram 3500, 4×4, 60″ C/A chassis (diesel or gas)
- Dry weight:~ 2950lbs.
This is Howards 3rd unit from OEV
- Under-bed storage plus a 6” queen size mattress
- Snap on vinyl window cover for entry door
- Screen door
- (2) dual pane acrylic windows on the passenger and driver side in the dinette area
- (8) windows in the soft wall (1 on each end and 3 on each side)
- 51” wide (north/south) u-shaped dinette – folds down into bed
- Marine fabrics for all cushions
- 4” medium density foam cushions
- High traffic grade lonseal vinyl flooring
- Powder coated aluminum interior cabinetry
- 3 ply bamboo counter top and table
- Starboard door and drawer fronts
- Dry bath, shower pan in the entry adjacent to the toilet closet
- Fire extinguisher (abc)
- Cabin fixed to chassis – fully isolated
- Under cabin powder coated aluminum locking cabinets
- OEV powder coated bumper with integrated back up camera & class v hitch
- OEV powder coated aluminum rub rail
- OEV spare tire carrier with a manual hoist-will fit up to a 40”
- OEV Molle rack
- OEV ladder
- OEV folding stairs
- Base camp graphics package
- (1)-multi speed roof vent
- 38 gal fresh water tank w/12v pump and sight gauge
- 38 gal fresh water tank w/12v pump and sight gauge
- sagiva outside & inside shower connection
- s/s deep sink w/J-handle faucet and cutting board top
- s/s single burner propane and removable single burner induction cooktop
- webasto (diesel or gas) airtop 2000 cabin heater
- oev hydronic system
- chassis glycol tie in for cabin in travel mode

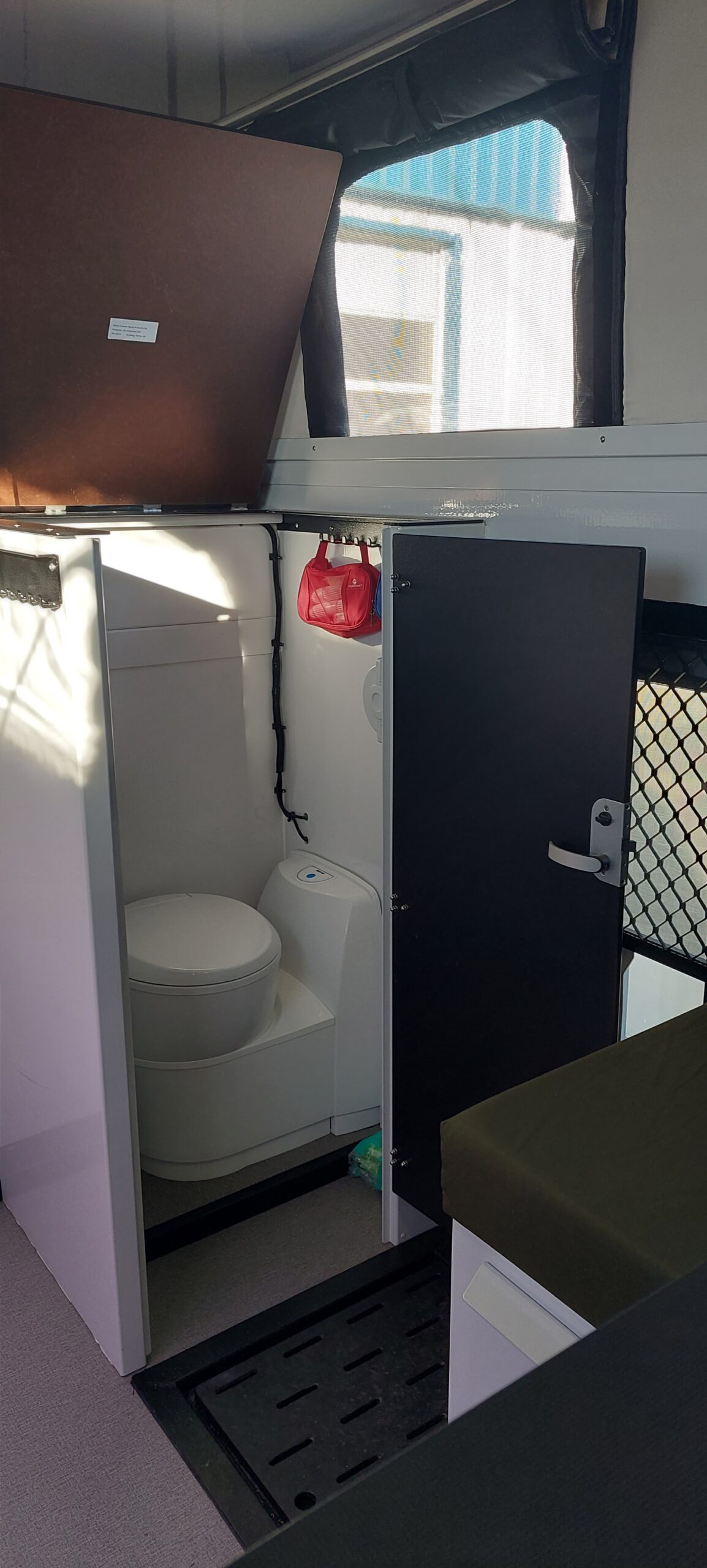

- thetford C223CS cassette toilet
- (2)-200W roof mounted solar panels
- victron soc display
- victron 100/30 mppt solar controller
- victron dc/dc charger

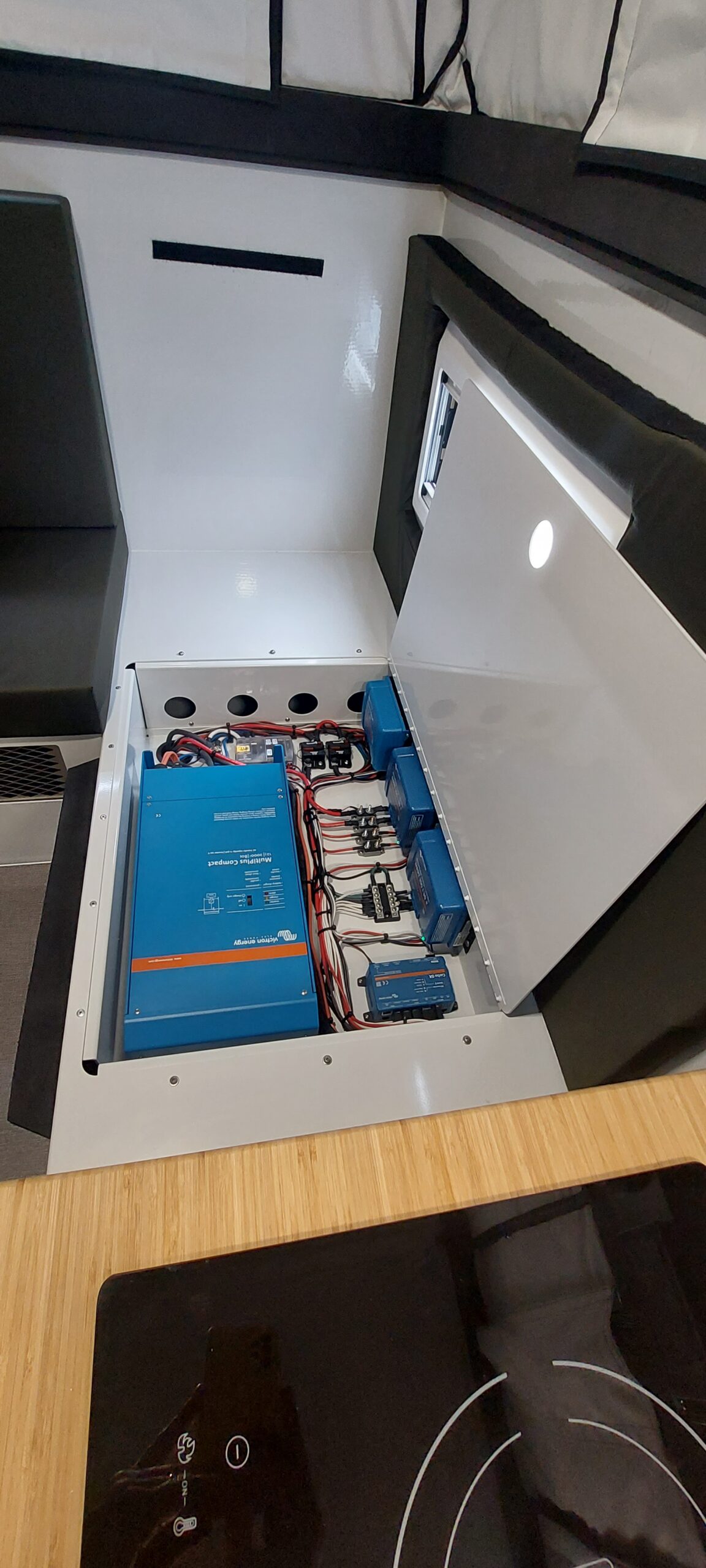

- 2000W victron multiplus compact 12/2000/80 inverter (w/charger) w/remote on/off
- (2)-ac 110v plugs
- LED PS amber exterior side light
- LED exterior DS/Rear light
- LED interior lighting
- 164L dc compressor fridge/freezer
- smoke/CO/LP detectors
- additional pair of 200W solar panels
- gernie style bunk over the dinette
- king bed extension w/6” mattress to match bed
- additional multispeed roof fan
- oev front cabin offroad light bar (does not include lights)
- 3 piece awning adapter kit for alu cab shadow 270 awning
- 2 piece awning adapter kit for batwing/foxwing/kinsmen
- air conditioning (split system) works in conjunction with chassis compressor (truck must be running)
- 12Vdc powered roof top nomadic cooling air conditioner
- cabin to cab pass through – sliding glass window on front cabin wall
- wrappon toilet – replaces the standard spec thetford cartridge toilet
- victron 100Ah agm battery (note-std spec does not come with a battery)
- relion LT100 LiFePO4 battery (note-std spec does not come with a battery)
Standard/optional features and prices are subject to change without notice.
