2021 OEV 6.75' ALUMA Tray

Starting @$12,100 USD / $14,995 CAD

Bolts to factory mount locations with urethane isolators designed to load the pick up chassis in the same locations as the factory intended, while providing isolation to allow for chassis movement. No U bolts, 2x4’s, plumber strap kind of mounting here.

Designed for 6.75′ truck bed replacement

High mounted DEF & fuel fillers for ease of filling.

All OEV decks are media blasted and powder coated.

Deck surface is 2 component polyurethane sprayed directly on for maximum scratch resistance, helps keep things in place too.

Lower cabinets are 5052 aluminum with HD “D” cell seals and Southco adjustable locking latches, tapered for maximum departure angle.

Rear light boxes are equipped with 2 tail lights per side with integral back up lights, and 2 clearance lights. All wiring is easily accessible.

Rear drawer is designed with sealed roller bearings and heavy duty guide channels to take what comes naturally, mud, dust, snow, and ice without affect. Rear roller guides can also be pressure washed after harsh use and require no maintenance, try that with a set of ball bearing slides! The rear drawer also features a hinged lid to keep the big chunks out or a spot for the cook top!

Headache rack is laser cut 5052 aluminum, designed with internal storage for optional OEV steps, or other long goods, secured with locking Southco latches. 2 levels of storage maximize space consumed by the headache rack.

Deck is fully formed laser cut with .160” 5052 aluminum sheeting to maximize strength with very good dent resistance while keeping weight down

Crossmembers are laser cut 2”x2”x.188” 6061 aluminum extrusions.

Sills are laser cut  5” 6061 aluminum C channel extrusions.

ALUMA Tray

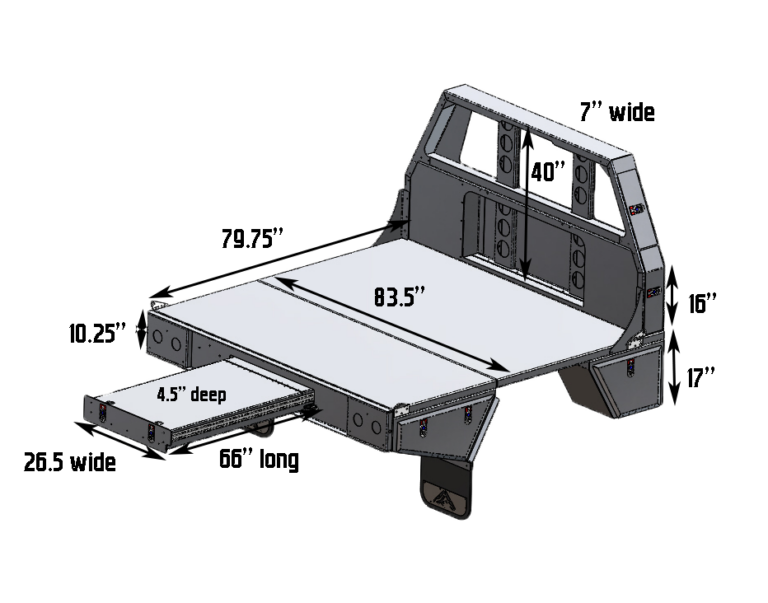

  • Bed surface dimensions: 79.75″ long x 83.5′ wide
  • Headache rack dimensions: 40″ tall from top of deck  to top of rack
  • Head ache rack  7″ thick
  • Drawer is 26.5″ w x 66″ long x 4.5″ deep
  • 660 lbs -dry weight
  • Black texture Powder coated Aluminum
  • 4 lower storage cabinets with positive locking latches
  • Fuel & DEF filler relocations for easy filling
  • Bed liner deck surface
  • Bed liner on top tray surface
  • Pull out rear drawer with lid for keeping things clean inside and using as a work surface if needed
  • Rubber Mud Flaps
  • All DOT LED lighting
  • Black powder coated aluminum collapsible 4 step ladder stores in headache rack
  • **CAMP-X only**  Full length upper side storage boxes installed on top of tray  (X-TC System)

X-Boxes for 6.75'Trays

ALUMA Tray X-Box Specs

  • Full length lockable storage for your outside or inside gear
  • All Aluminum Construction
  • Dimensions: 78″L x 16″ D x 20″ H
  • Weight TBD (approx 60lbs)
  • Black Texture Powder Coating
  • D-seal weather stripped door
  • HD Textured Eva foam on floor inside cabinets helps  keep things quite and in place
  • Fits 6.75′ Aluma Tray’s
  • X-Boxes are reversible
  • Full length SS Piano Hinge
  • Positive Locking latches
  • 2 Gas struts on  door
  • Door drops down to provide light duty work surface while open
  • Open by design for different equipment such as: Fire Extinguisher, totes & bins, long items like skis, snows boards, shovels, axes, firewood’s etc.
  •  2 gallon RotopaX fits perfect on the end
  • All required install hardware included
  • 20 lbd auxiliary Propane bottle holder
  • Luna Soft Touch LED with 3 level switch red and white with wiring harness
  •  L-Track 1 foot to 6 foot lengths available
  • Rubber foot upgrade kit for the bottom of your CAMP-X traction for Aluma tray bed liner tray surface.  (Standard equipment on 2021’s)
  • End door for long items like ski’s.
  • CAMP-X to ALUMA tray Mount plates to relocate your Tork lift tie down correctly

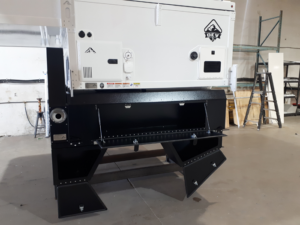

CAMP-X on ALUMA Tray with X- boxes
