THE TOUGHEST FLATBED TRUCK CAMPERS ON THE MARKET

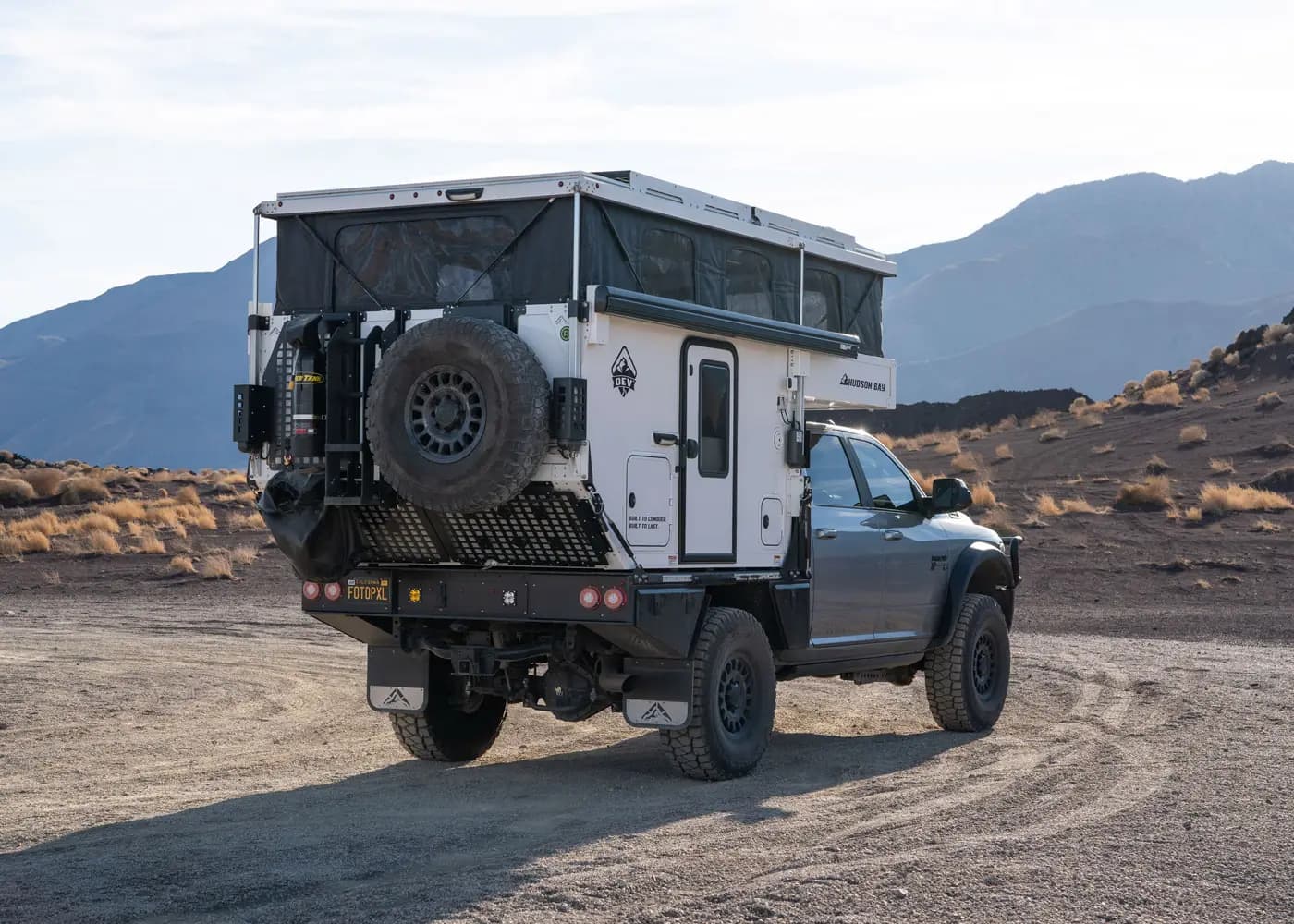

The Hudson Bay is one of our most popular camper models designed to sit on our Aluma Tray or any other flatbed on the market. Its pop-up roof and removable three-season cabin comfortably sleeps up to four adventurers. Its robust construction includes powder-coated aluminum extrusions, OEV™ Gen 4 Advanced Fiberglass Composite System (AFCS) walls with an R8 insulation value, and fire-rated four-layer soft walls (R4) for safety and comfort.
This camper is engineered for durability, featuring locking roof support/hinges at both ends, DOT LED lighting for visibility, and compatibility with 3/4 and 1-ton trucks. With a dry weight of 1780 lbs (excluding jacks and batteries), it’s easy to transport, and the OEV™ installation kit includes rubber feet for stability. The Hudson Bay is your trusted partner for rough adventures, built to withstand the elements and take you to the most remote destinations.
SPECIFICATIONS
- Pop-up Roof
- Removable Cabin for Three Seasons
- Sleeps up to Four
- External Dimensions: 156” L x 81” W x 58” H (closed)/80” (open)
- Internal Dimensions: 153” L x 78” W x 55” H (closed)/77” (open)
- Interior Height: Available in a 6'4" & 6'6" version
- Constructed with Powder-Coated Aluminum Extrusions
- OEV™ Gen 4 Composite Floor, Walls, and Roof (R-value of 8 or less)
- Fire-Rated Insulated Four-Layer Soft Wall (R-value of 4 or less)
- Locking Roof Support/Hinges at Both Front and Back
- Equipped with DOT LED Lighting
- Designed to Fit Factory 3/4, and 1-ton Trucks
- Dry Weight: 1780 lbs (Excludes Jacks and Batteries)
- OEV™ Install Kit Includes 20 Rubber Feet to Protect Camper
- Wiring Harness for DC to DC Charging
POP THE TOP
Slide the center arrows up and down to watch the Hudson Bay transform!


STANDARD FEATURES & OPTIONS
Plumbing/Heating/Cooling:
Truma Propane AquaGo Hot Water |
Truma Vario Propane Heater |
(1)-Multi Speed Roof Vent |
38-gal Freshwater Tank w/12v Pump & Level Gauge |
Sagiv Outside & Inside Shower Connection |
Geyser Shower Adapter Kit |
S/S Sink w/Flush Mount Glass Top & Upgraded Faucet |
S/S Cooktop w/Cast Iron Grates and Flush Mount Glass Top |
Electrical:
(1) 220W Roof Mounted Solar Panel |
Victron MPPT 100-50 Solar Controller |
Victron Blue Smart IP22 Charger |
Victron Orion XS100 Smart 12-50 DC/DC Charger |
LED PS Exterior Side Light |
LED Exterior DS/Rear Light |
LED Interior Lighting |
USB (Type A & C) |
130L DC Compressor Dometic Fridge/Freezer |
Battery Box Dimensions 261/2 x 161/2 x 15” H |
Other:
Toilet Slides Out from Underneath the Passenger Side Dinette Seat (Toilet not included) |
Inside Shower Under Dinette Table |
O/C Bed with 4” soft/med density combination Queen Size Mattress |
HB Graphics Package |
Screen Door w/pet guard |
Aluminum Propane Cabinet w/ (1)-20 lb Marine Tank |
East/West Dinette Folds Down into Bed |
Marine Fabrics |
4” Medium Density Foam Cushions |
Vinyl Entry Door Window Cover |
High Traffic Grade Lonseal Vinyl Flooring |
Powder Coated Aluminum Interior Cabinetry |
Starboard Door & Drawer Fonts |
Fire Extinguisher |
LP Detector |
Smoke/CO Detector |
(4) Manual Rieco Camper Jacks |
Available Cushion Colors
Customize your cushions with four color options.




We have Dealers in Oregon Nevada California Colorado Montana Texas New Jersey Quebec Alberta
EXPLORE EXTERIOR FEATURES
Explore the camper by rolling your mouse over the red callouts.

Auto Rook Lifting System
1 of 14Composite walls deliver exceptional strength and possess an insulation value of R8.
2 of 14Our standard insulated soft walls provide an insulation value of R4.
3 of 14DOT LED Lighting
4 of 14Aluminum Exoskeleton
5 of 14Each pop-up side wall features three windows on each side. Campers equipped with the optional Auto Roof Lifting system will also include front and rear windows, as shown in this image.
6 of 14Each pop-up side wall features three windows on each side. Campers equipped with the optional Auto Roof Lifting system will also include front and rear windows, as shown in this image.
7 of 14Solar Panels
8 of 14Access to the water tank and winterization hose.
9 of 14Access to the toilet cartridge (for campers equipped with the built-in Thetford Cartridge Toilet) or additional storage if no toilet is installed.
10 of 14Optional MOLLE panels enhance storage capacity and customization options.
11 of 14Optional ladder.
12 of 14Optional rear tire carrier or the choice to add an additional rear MOLLE panel.
13 of 14Our Aluma Tray flatbed is the perfect companion for the Hudson Bay or any other flatbed camper.
14 of 14FLOOR PLAN
The Hudson Bay offers a single floor plan with multiple choices for storage, power, refrigeration, and sleeping arrangements. Our dedicated team of dealers is readily available to address any inquiries and assist you in initiating your OEV™ camper purchase. Built to Conqueror. Built to Last.
Explore around the camper by dragging your mouse or clicking on the circles to change the viewing angle.
EXPLORE INTERIOR FEATURES
Explore the camper by rolling your mouse over the red callouts.

Join Our Newsletter
Join our monthly OEV newsletter for the latest on campers, tips, updates, and adventure ideas!






BUILD YOUR HUDSON BAY 6.75'Starting at: $70,595 USD
We’ll connect via text, phone, and email, so keep an eye out!
Standard/optional features and prices are subject to change without notice.
