THE TOUGHEST FLATBED CAMPERS ON THE MARKET

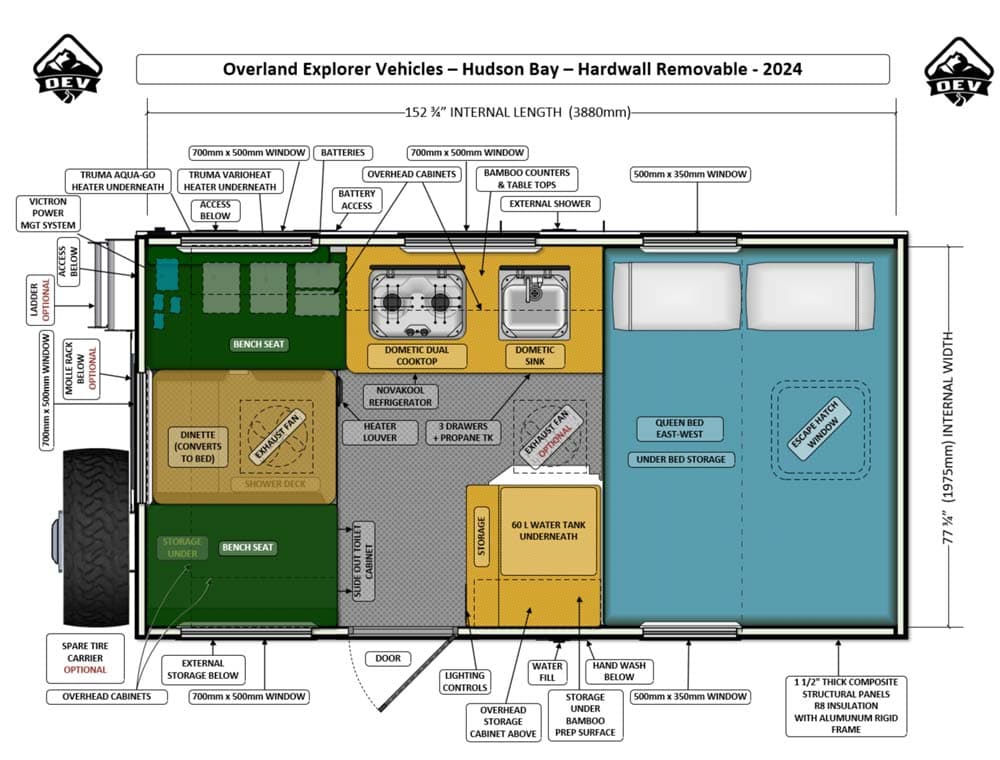

Our most popular pop-up roof camper is now available in a Hard-Side version. It has the same floor plan as the pop-up model but now has additional features such as upper storage compartments, lighting, and windows.

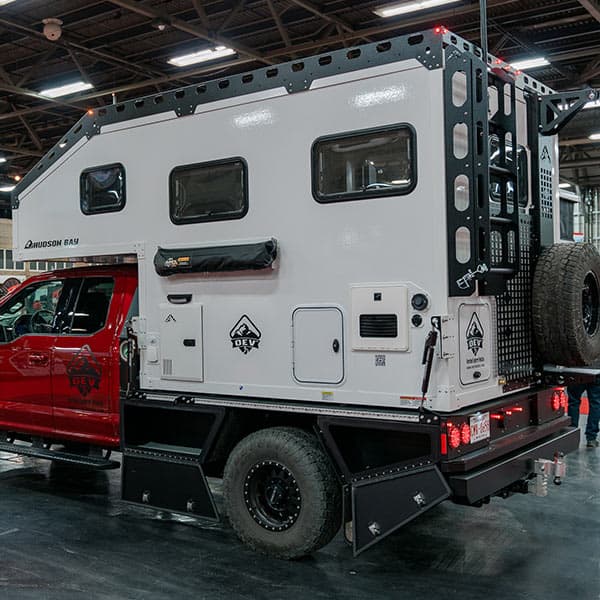

The Hudson Bay Hard-Side is engineered to seamlessly fit onto our Aluma Tray or any standard flatbed, offering a removable three-season cabin that comfortably accommodates up to four adventurers. Crafted with a robust construction including powder-coated aluminum extrusions and OEV Gen 4 composite materials boasting an impressive insulation rating of R8, this camper is designed to withstand the rigors of outdoor exploration. Compatible with 3/4 and 1-ton trucks, it weighs in at 2218 lbs and is sure to redefine your camping experience – definitely not your Grandpa’s camper!
SPECIFICATIONS
- Hard-Side design
- Removable Cabin for Three Seasons
- Sleeps up to Four
- External Dimensions: 156” L x 81” W x 86.5” H
- Internal Dimensions: 153” L x 78” W x 77.5” H
- Constructed with Powder-Coated Aluminum Extrusions
- OEV Gen 4 Composite Panels (1.5” thick) =>R8 insulation value
- Equipped with DOT LED Lighting
- Designed to Fit Factory 3/4, and 1-ton Trucks
- Dry Weight: 2218 lbs (Excludes Jacks and Batteries)
- OEV Install Kit Includes 20 Rubber Feet to Protect Camper
- Wiring Harness for DC to DC Charging
STANDARD FEATURES & OPTIONS
GENERAL FEATURES
- (6) Dual Pane Acrylic Windows w/Built In Shade & Screen
- (1) Marine Escape Hatch with Shade
- Screen Door
- Entrance Door with Grab Handle
- Pullout Drawer for a Wrappon or Porta Potti (Not Included)
- Outside Shower Enclosure Mounting Brackets and Adapters
- Fire Extinguisher
- Lp Detector/Co Detector
- Smoke Detector
- Aluminum Storage Closet with Two Adjustable Shelves
- Upper Cabinet(s) Above Galley & Dinette
- Lower Cabinet Houses the Water Tank
- Toilet Slides Out from Underneath the Passenger Side Dinette Seat (Toilet not included)
- Rub Rail On Roof
BUILD QUALITY
- OEV Gen 4 Composite Panels (1.5” thick) =>R8 insulation value
- Constructed with Powder-coated Aluminum Extrusions
- High-traffic-grade Lonseal Vinyl Flooring
- Structural Powder-coated Aluminum Interior Cabinetry
INSULATION
- OEV Gen 4 Composite Panels (1.5” thick) =>R8 insulation value
WATER
- 38-gallon Fresh Water Tank with a 12v Pump
- Truma Aquago Hot Water System
- Sagiv Outside Shower Connection
- Inside Shower under Dinette Table
FUEL
- 20 Lb Propane Tank
- Aluminum Propane Cabinet
ELECTRICAL
- 220W Roof Mounted Solar Panel
- Victron Smart Solar MPPT 100-30 solar controller
- Victron Blue Smart IP22 charger
- Victron Orion TR Smart 12-30 DC/DC Ccharger
- LED PS Exterior Side Light
- LED Exterior DS/Rear Light
- LED Dimmable Interior Lighting
- LED Rotating Round Bar Located Above Galley
- USB Type A&C
- 164L DC Compressor Fridge/Freezer
- Battery Box Dimensions 26.5” L x 16” W x 15” H
SLEEPING
- Queen-size 4” Mattress
- Dinette Folds down into a 38”x77” Bed
SEATING
- East/West Dinette Folds Down into Bed
- Marine-grade Fabrics
- 4” Medium-density Foam Cushions
HEATING
- Truma Vario Heat with Thermostat
COOLING
- Multi-speed Roof Vent with Roller Blind
COOKING
- Stainless Steel (S/S) Cooktop with a Flush-mount Glass Top
- Stainless Steel (S/S) Sink with a Flush-mount Glass Top
OPTIONS
- Additional 220 W Solar Panel, Includes Mounting Bracket
- Single Burner Induction (removable and requires inverter) & Single Burner Propane Cooktop
- Thetford 200866sp Cartridge Toilet
- Trekker/Wrappon Toilet
- Additional Multi Speed Fan
- Gurney Style Removable Bunk above Dinette, Pins in Place, Stores on Front Bed
- Under Bed Storage, 2.5″ High – 3 Compartments, Powder Coated Slotted Aluminum with Gas Struts to Assist Lift
- 2000w Victron Multiplus Pure Sign Inverter , Also Includes One Gfi Receptacle in the Galley
- 3000w Victron Multiplus Pure Sign Inverter , Also Includes One Gfi Receptacle in the Galley, Note-the 3000w Is Much Bigger in Size Vs the 2000w
- OEV Front off Road Light Bar (Lights Not Included)
- 12v DC Powered Roof Top Nomadic Cooling Air Conditioner
- OEV Fixed Spare Tire Rack (Max Diameter 40″), Installed, Passenger Side Vertical Only
- (4) Manual Rieco Titan Camper Jacks
- (4) Torklift Anchor Guard Derringer Tie-downs
BUILD YOUR HUDSON BAY HARD-SIDE FLATBED CAMPERStarting at: $84,595 USD
Fill out the form and one of our team members will get in touch to assist you with your camper build and questions.
Standard/optional features and prices are subject to change without notice.
