Hard-Side Chassis Mount · Sleeps 3–4
Hudson Bay 8'
Chassis Mount
The Hudson Bay floor plan in a permanent hard-side chassis mount. R8 composite construction and Victron electrical, six dual-pane windows, Timberline hydronic heat and hot water, four under-cabin locking cabinets, and an integrated rear bumper with backup camera and Class V hitch.
Dry Bath
Starting at
$120,500
Wet Bath
Starting at
$122,300
Dry Weight2,904 lbs
Mounting StyleChassis Mounted
Sleeps3 to 4 people
Fits3/4 & 1-ton trucks
Full Specifications
By the Numbers
Dry Weight
2,904 lbs
excl. options & batteries
External Length
156"
overall
External Width
81.25"
Height
86.5"
exterior hard-side
Interior Height
83.5"
approx. 6'11"
Interior Length
153"
floor
Interior Width
78.25"
floor
Fresh Water
28–38 gal
dry bath / wet bath
Gray Water
20 gal
external tank
Solar
220W
roof-mounted
Refrigerator
130L
Isotherm drawer-style fridge/freezer
Truck Type
3/4 & 1-ton
chassis mount
What's Included
Standard Features
Chassis-mounted hard side. Permanently fixed to the chassis; fully isolated. Not removable.
OEV Gen 4 Composite walls and roof — 1.5" (38.1mm). R8 or greater
1.5" (38.1mm) honeycomb polypropylene floor. R5 or greater
Powder-coated aluminum extrusions throughout
(6) dual-pane acrylic windows on driver and passenger sides in the dinette area
DOT LED lighting
Customize Your Build
Available Options
Under Bed Storage (UBS) — 2.5" high, 3 compartments, slotted aluminum with gas struts
Gurney bunk — removable, pins above dinette, stores under front bed
Take the Next Step
Like What You See?
Layout
Floor Plan
Dimensions shown are approximate. Click either image to enlarge.
Gallery

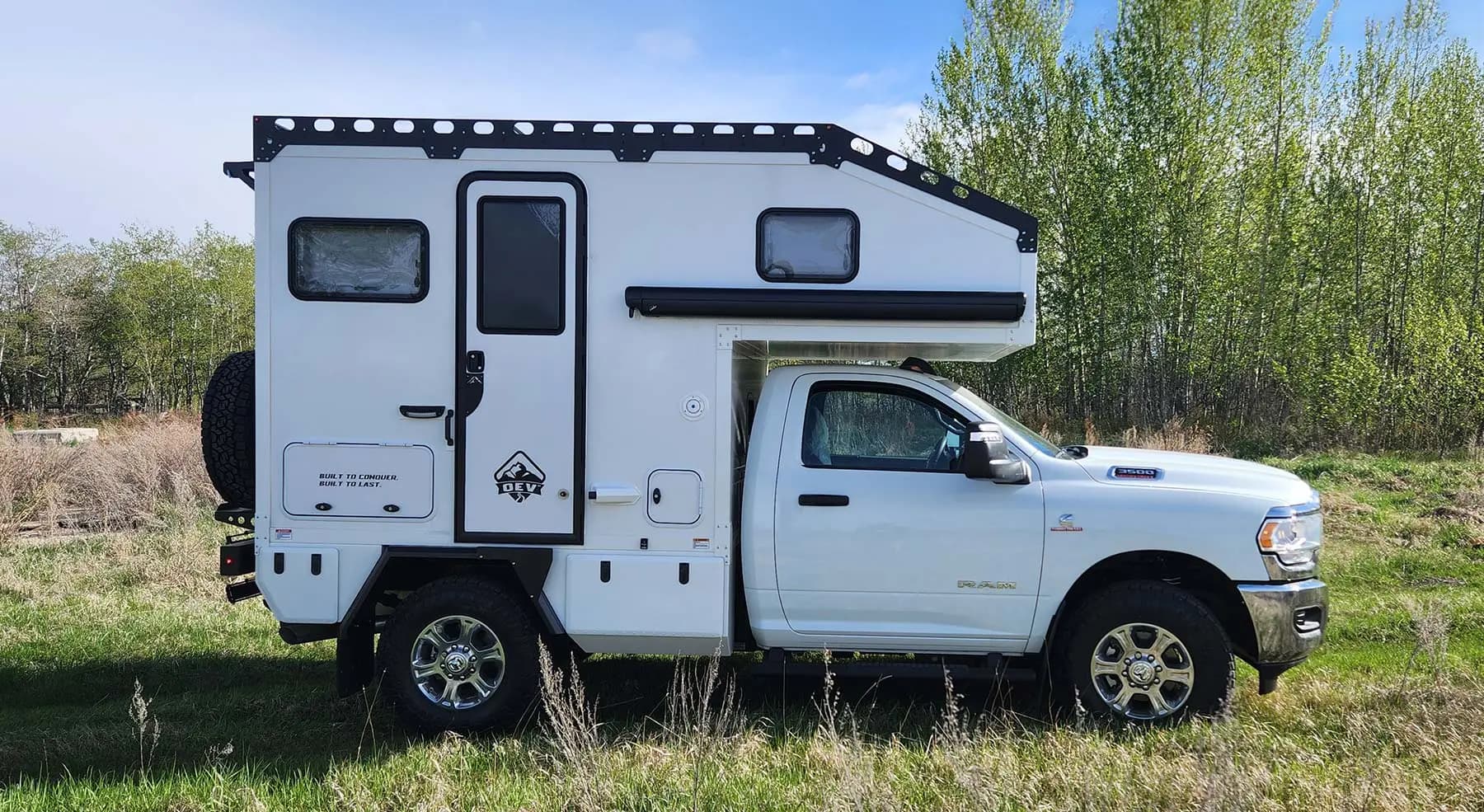

The Rig
The photos below show the dry bath floor plan. Wet bath images are coming soon. In the meantime, visit the floor plan section to see the exact layouts for both options.
Lightweight. Expedition Ready.
Built to Stay Under Your GVWR.
Built to Outlast Your Truck.
See It in Action
Watch the Walkthrough
Video coming soon
Ready When You Are
Let's Talk
Hudson Bay.
Book a 30-minute consultation and we'll walk through the build, your truck, and every option worth considering.
