Aluminum Flatbeds
Four aluminum flatbeds for full size 3/4 ton and 1 ton trucks. Your truck decides the model: short box, long box, or a 60 inch cab to axle chassis cab. Prices start at $11,819 USD.
Aluma Tray is OEV's sister company. Both sit under Lite Industries, and every tray is built in Red Deer, Alberta. OEV is an Aluma Tray dealer, so you can spec the camper and the flatbed in one conversation. Each tray is CNC cut and formed from high strength aluminum, powder coated matte black, finished with a Rhino Lined deck, and isolated from the frame on steel mounts and urethane bushings.
Aluma Tray 6.75’
For 3/4 ton and 1 ton short box trucks
From $11,819USD, plus bulkhead
Takes the place of the factory short box with a flat Rhino Lined deck and four locking boxes underneath. Pick the 7” or 14” bulkhead to suit your camper.
- Truck
- 3/4 ton and 1 ton, short box
- Rated load
- 3,000 lbs
- Weight
- ≤ 800 lbs
- Pairs with
- Hudson Bay 6.75’, Back Country 6.85’

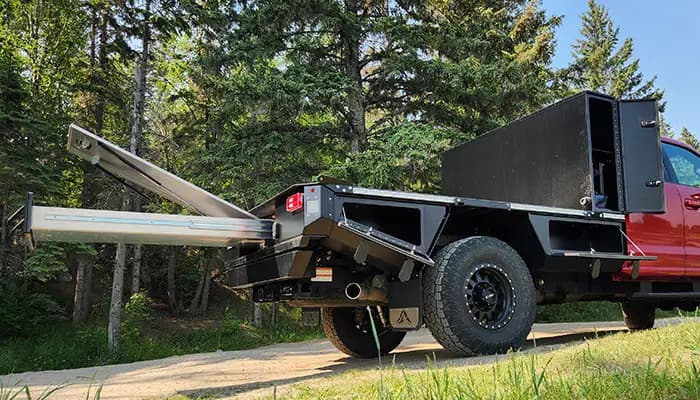

Aluma Tray 8’
For 3/4 ton and 1 ton 8 foot long box trucks
From $12,879USD, plus bulkhead
The long box version, with the most front of deck choices: a 25” bulkhead, a spare tire carrier and two tier cargo boxes. Dually fenders available.
- Truck
- 3/4 ton and 1 ton, 8 foot long box
- Rated load
- 3,000 lbs
- Weight
- ≥ 765 lbs
- Pairs with
- Hudson Bay 8’, Hudson Bay 6.75’, Back Country 6.85’

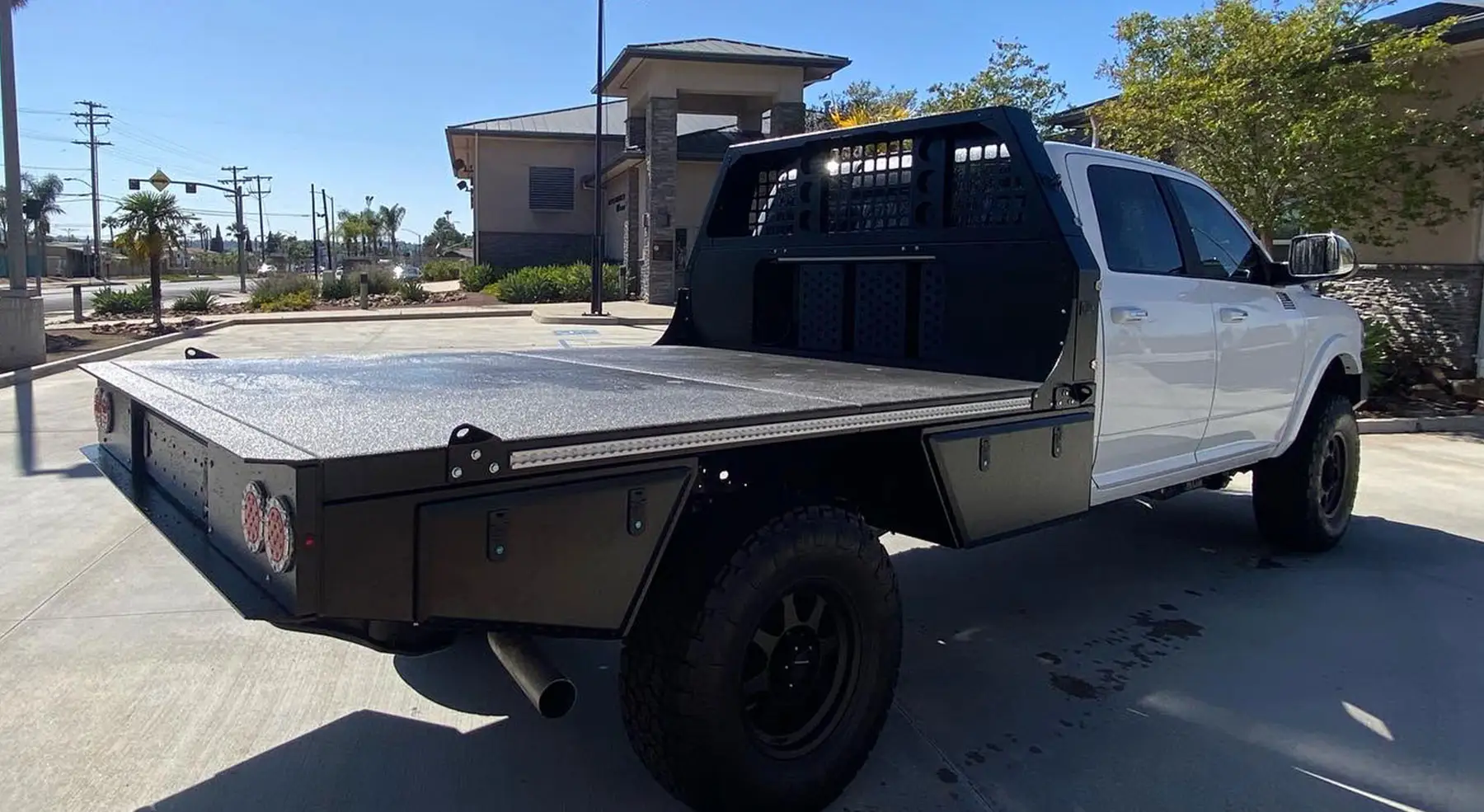

Aluma Tray HD-60
For 60 inch cab to axle chassis cabs
From $17,820USD, bulkhead included
A 9’02” by 7’ deck rated to 5,000 lbs, with a full width 7” bulkhead included. Fits domestic commercial chassis cabs from the 1 ton up.
- Truck
- 1 ton chassis cab, 60 inch cab to axle
- Rated load
- 5,000 lbs
- Weight
- ≥ 840 lbs
- Pairs with
- High Country (on TorkLift tie-downs)
Aluma Tray HD-60-HC
Built for the OEV High Country
From $19,075USD, bulkhead included
Four tapered pockets in the deck take the High Country’s feet so the camper bolts straight to the tray. Deeper 15” bulkhead included.
- Truck
- Domestic commercial 60 inch cab to axle chassis
- Rated load
- 5,000 lbs
- Weight
- ≥ 900 lbs
- Pairs with
- High Country Hard Side and Pop-Up
Aluma Tray HD-84
An 84 inch cab to axle platform coming as a 2027 model, and the first one is in the shop now. Price, tray weight and load rating stay unpublished until the factory signs them off, so here's only what's confirmed.
- Fits domestic commercial chassis cabs with an 84 inch cab to axle
- 8 foot flatbed length
- Independent 39” wide garage at the front with gullwing doors on both sides
- Garage holds the OEV outdoor kitchen, the OEV folding stairs and a spare tire up to 41”
- An HD-84-HC version adds the tapered pockets the High Country bolts into
From the Build Files
Engineering drawings, not photos, and details can still change before the first HD-84 ships. Click any drawing to see it larger.
How the Spare Comes Out
Looking at the front of the garage, step by step. These are early elevations, not a final spec.

1Doors shut, folding stairs down
2Doors up, spare still stowed
3Spare sliding out on its carrier
4Spare down and clear
Compare the Trays
Start with your truck. Short box and long box pickups take the 6.75' and 8', rated to 3,000 lbs. Chassis cabs with a 60 inch cab to axle take the HD-60 or HD-60-HC, rated to 5,000 lbs. Ratings assume the load is spread evenly across the deck.
| Model | Truck | Rated load | Weight | Bulkhead | Starting at |
|---|---|---|---|---|---|
| Aluma Tray 6.75’ | 3/4 ton and 1 ton, short box | 3,000 lbs | ≤ 800 lbs | 7” tapered or 14” rectangularPriced separately | $11,819 |
| Aluma Tray 8’ | 3/4 ton and 1 ton, 8 foot long box | 3,000 lbs | ≥ 765 lbs | 7” tapered, 14” rectangular, or 25”Priced separately | $12,879 |
| Aluma Tray HD-60 | 1 ton chassis cab, 60 inch cab to axle | 5,000 lbs | ≥ 840 lbs | 7” tapered, full width 84”Included | $17,820 |
| Aluma Tray HD-60-HC | Domestic commercial 60 inch cab to axle chassis | 5,000 lbs | ≥ 900 lbs | 15” rectangular, driver side half, 42” wideIncluded | $19,075 |
Prices are USD MSRP for buyers in the US and Canada. Aluma Tray doesn't build for midsize trucks.
What Every Build Adds
The starting price is the tray with its standard equipment: four locking under-deck boxes, the Rhino Lined deck, L-Track down both sides, DOT LED lights, a 4 and 7 pin trailer plug, and weighted mudflaps with rock guards. Every truck also needs the items on the right. On the 6.75' and 8', add a bulkhead starting at $3,329. Each model page lists every option with its price.
- Tray to chassis mounting kitKit is matched to your truck
- $1,166
- Fuel kit, gas or diesel without DEFSingle mount plate
- $290
- Fuel kit, diesel with DEFDouble mount plate, two fill buckets
- $542
- Dually fender extensionDual rear wheel trucks only
- $2,268
Not Sure Which Tray Fits?
Tell us your truck, your camper, and what you're building toward. We'll match you to the right tray and get you spec'd.
